Room Space for a Wheelchair User at the Treatment Chair

A wheelchair user can be treated in a room only if three things are present at once: a clear space beside the treatment chair of at least 900 mm by 1300 mm, a transfer surface set at the same height as the wheelchair seat, and a route wide enough for the equipment trolley to reach the chair. If any one of the three is missing, the appointment moves to a different room or does not happen. The threshold, the door leaf and the trolley decide the outcome before the clinician does. For clinicians and biomedical engineers who want the detail on the single-use devices themselves, from circuits and filters to airway and oxygen delivery items, a clinical airway device reference sets out the categories and the standards that apply to each.

How much space does a wheelchair need beside a treatment chair?

Approved Document M, the part of the Building Regulations that covers access to and use of buildings, gives the working figure for a wheelchair space as 900 mm wide by 1400 mm long for a forward approach, and 1400 mm by 1400 mm where the user has to turn. BS 8300-1:2018, the British Standard on the design of an accessible and inclusive built environment, treats 1500 mm as the preferred turning circle for a powered chair and 1200 mm as the minimum. A side transfer from a wheelchair to a treatment chair needs a clear rectangle beside the chair of at least 900 mm by 1300 mm, with nothing stored in it.

That rectangle is the part of the room that disappears first. A treatment couch pushed against a wall removes the transfer side. A bin, a folding screen or a stack of paper towels placed in the gap turns a usable room into an unusable one without any building work being done. The measurement to take is not the floor area of the room but the clear distance from the edge of the treatment chair to the nearest fixed object, and the clear distance from the chair to the door.

Where the wheelchair user stays in the chair for the whole appointment, the space requirement changes. The chair itself then needs a clear approach and a position where the clinician can work from both sides. A wheelchair occupies roughly 700 mm by 1200 mm, so a room that cannot give 900 mm of clear width on the working side will force the clinician to lean across the patient.

What is the transfer height between a wheelchair and a treatment chair?

There is no single transfer height, because wheelchair seat heights vary. The usual range for an adult manual or powered wheelchair is 480 mm to 520 mm from the floor to the top of the seat cushion, measured with the cushion compressed under the user's weight. A treatment chair or couch set at 550 mm sits above that range; one set at 450 mm sits below it. Both create an uphill or downhill transfer that the user has to manage with the arms alone.

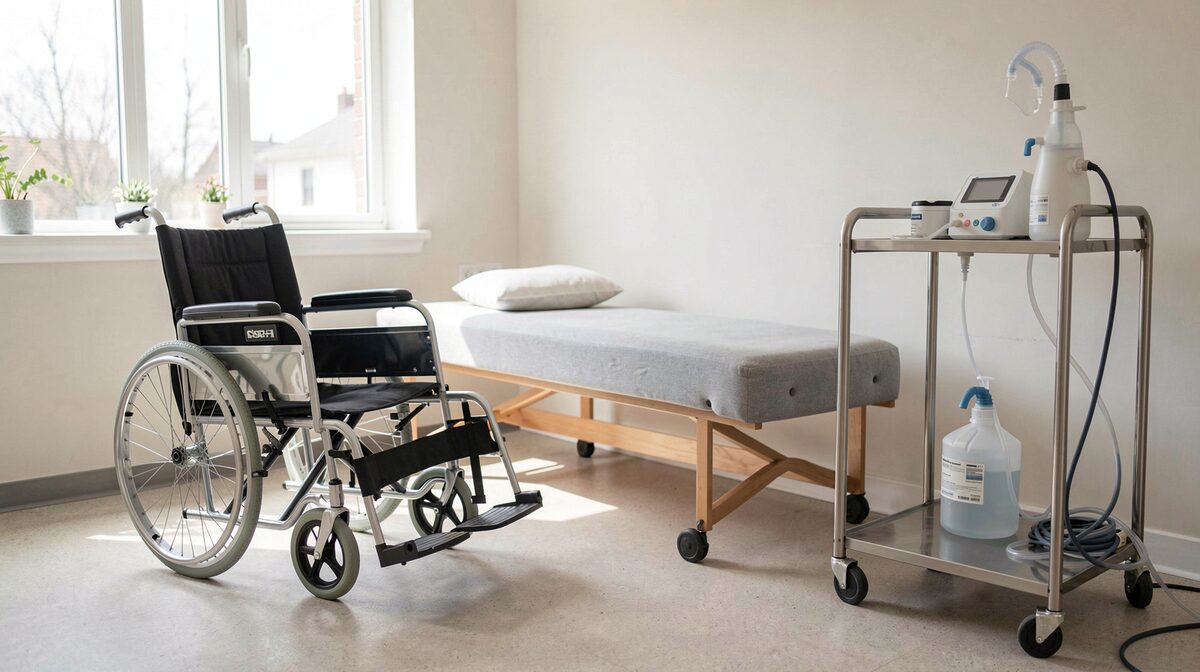

BS 8300-1:2018 addresses this by treating a level transfer as the target and by recommending an adjustable-height treatment surface where a transfer is expected. A height-adjustable couch that can be set to the individual wheelchair seat height removes the step entirely. Where the couch is fixed, the practical answer is a transfer board or a hoist, and both need their own clear floor space: a mobile hoist requires a turning area of about 1500 mm diameter, and a transfer board needs the two seats within 75 mm of each other in height.

The Equality Act 2010 sets the duty rather than the number. A service provider has to make reasonable adjustments so that a disabled person is not placed at a substantial disadvantage. In a treatment room, the adjustment is often a height-adjustable couch, a transfer board kept in the room, or a booked double appointment that allows the transfer to be done without rushing. The physical detail that makes any of these work is the same: the wheelchair has to be able to stand parallel to the treatment chair, with the two seats close and level.

What has to reach the chair once the patient is on it?

The equipment trolley is the part of the room that is most often forgotten. Once the patient is on the treatment chair, everything needed for the appointment has to arrive at the chair without the patient moving again. On a respiratory or critical care ward that can mean a nebuliser, a suction unit, a pulse oximeter, oxygen tubing, a bag-valve mask and a range of single-use items, all of which sit on a trolley that has to be wheeled to the working side of the chair. The same principle applies in any treatment room: if the trolley cannot reach the chair, the clinician leaves the patient to fetch items, and the transfer is put at risk.

A standard equipment trolley is about 600 mm wide and 450 mm deep, and needs a clear route of at least 800 mm to pass a doorway and 900 mm to pass a person. A room with a 750 mm door leaf will not admit the trolley without folding or unloading it. The route from the store to the chair, not just the room itself, is the thing to measure. A corridor with a linen skip against one wall can reduce the clear width below the figure the trolley needs.

That background matters here because the number of items on the trolley determines how much clear floor space the room has to keep free.

Does the door leaf decide whether the room works?

It often does. Approved Document M gives 900 mm as the clear opening width for a new accessible door, and BS 8300-1:2018 gives 800 mm as the minimum clear opening for a wheelchair user to pass without assistance. A 900 mm door leaf in a standard frame gives a clear opening of about 800 mm to 830 mm once the leaf thickness and the stop are taken off. A 750 mm leaf gives roughly 680 mm, which a manual wheelchair can pass with difficulty and a powered chair cannot.

The threshold matters as much as the width. A lip of more than 15 mm at the door stops a small-wheeled chair and makes a powered chair jolt. Approved Document M allows a maximum upstand of 15 mm where the threshold is chamfered, and requires a level or ramped approach where it is not. A 1 in 12 ramp is the steepest permitted for an independent approach, and it needs 1 metre of length for every 12 millimetres of rise.

Can the room be changed without building work?

Yes, in most cases. The three measurements that decide the room are the clear transfer space beside the chair, the height difference between the wheelchair seat and the treatment surface, and the clear route for the trolley. Each can be changed without moving a wall.

• Move the treatment chair away from the wall to open a 900 mm transfer side, and mark the floor so the space stays clear.
• Replace a fixed couch with a height-adjustable one, or keep a transfer board and a mobile hoist in the room.
• Clear the corridor and the doorway of stored items so the trolley can reach the chair in one trip.
• Record the clear opening width of the door and the threshold height, and note them in the room's access information.

A room that passes all three checks can treat a wheelchair user without a second appointment and without a manual handling incident. A room that fails one of them will fail it every time, whatever the goodwill of the staff.

What should the appointment letter say?

An appointment letter should state the clear transfer space, the transfer height, and whether an equipment trolley can reach the chair. It should name the room, give the clear door opening width in millimetres, and say whether the threshold is flush or has a lip. It should say whether the treatment surface is height-adjustable and whether a hoist or transfer board is available. A patient who knows these four facts can decide whether to attend in the wheelchair, bring a carer, or ask for a different room. The figures come from Approved Document M, BS 8300-1:2018 and the Equality Act 2010, and they are the same figures the room should be measured against.
